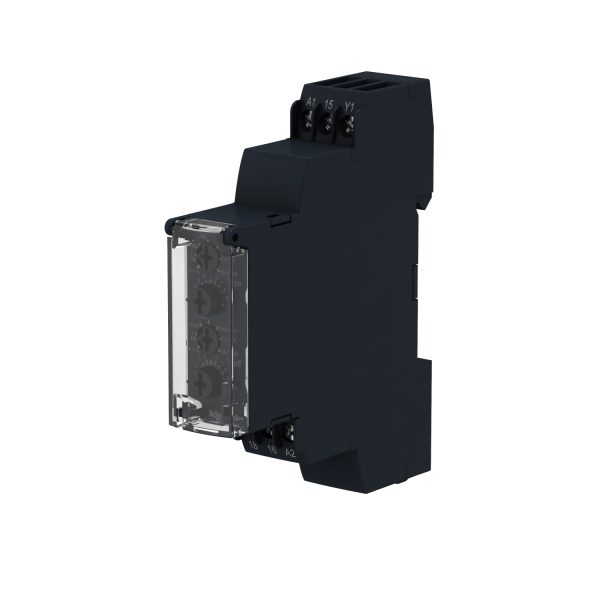

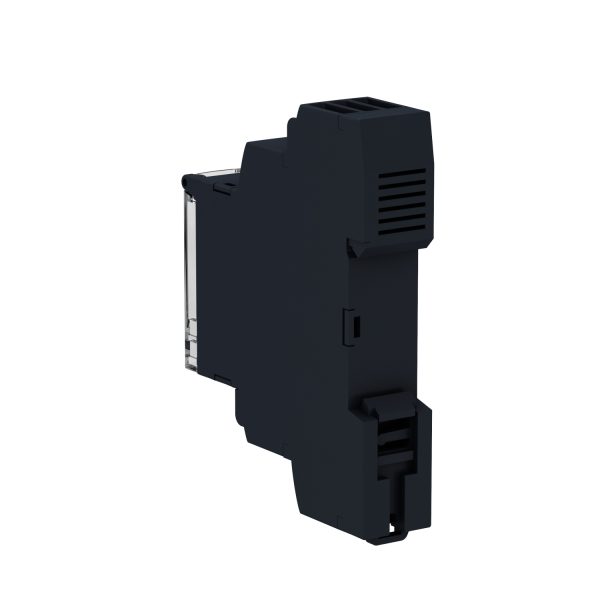

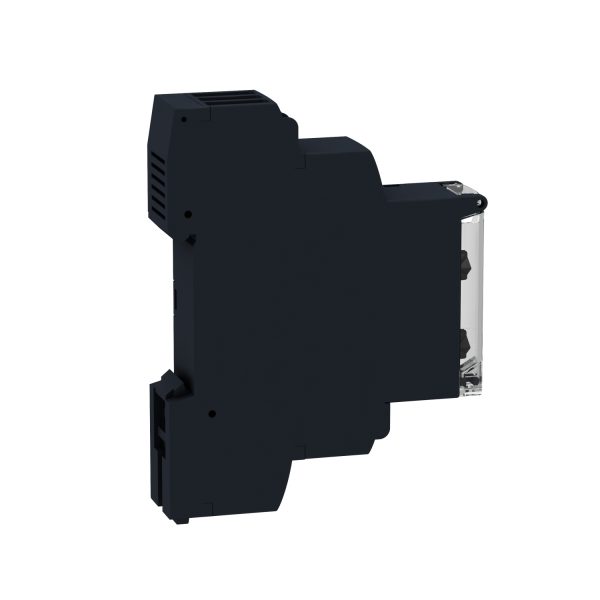

Schneider RE17LLBM | Asymmetrical flashing relay – 0.1..1 s – 24..240 V AC – solid state output
1,846 EGP3,183 EGP (-42%)
Schneider RE17LLBM | Asymmetrical flashing relay – 0.1..1 s – 24..240 V AC – solid state output
Introduction The Schneider RE17LLBM is a cutting-edge asymmetrical flashing relay designed to enhance control and efficiency in electrical systems. This article delves into its features, benefits, applications, installation guidelines, maintenance, and troubleshooting tips.
Features The RE17LLBM offers a versatile relay time range of 0.1 to 1 second, catering to diverse timing needs in industrial and automation settings. It supports voltages ranging from 24 to 240 V AC, ensuring compatibility with various power systems. With its solid-state output, this relay delivers reliable performance and durability.
Application This relay finds widespread application in industrial machinery, automation systems, and control panels. It plays a crucial role in timing operations, sequence control, and ensuring precision in electrical circuits.
Benefits
- Increased Efficiency: The precise timing capabilities of the RE17LLBM improve process efficiency and accuracy.
- Enhanced Safety: By controlling electrical outputs effectively, it contributes to a safer working environment.
- Reliability: Solid-state outputs ensure long-term reliability and reduced maintenance requirements.
Installation Proper mounting and wiring are essential for optimal performance. Follow manufacturer guidelines for mounting locations and secure wiring connections to ensure safe and efficient operation.
Maintenance Regular cleaning and inspection of the relay are recommended to prevent dust accumulation or damage to internal components. Follow maintenance schedules provided by Schneider for prolonged reliability.
Troubleshooting Common issues such as relay malfunction or timing discrepancies may arise. Refer to the user manual for troubleshooting steps or consult a qualified technician for assistance.
Conclusion The Schneider RE17LLBM asymmetrical flashing relay is a versatile and reliable solution for timing control in electrical systems. Its features, applications, and benefits make it a valuable component in industrial and automation setups.
FAQs
- What is the voltage range supported by the RE17LLBM relay? The relay supports voltages ranging from 24 to 240 V AC.
- Can I use the RE17LLBM in control panels? Yes, it is suitable for use in control panels for timing and sequence control applications.
- How often should I perform maintenance on the relay? Regular cleaning and inspection are recommended as per the manufacturer’s guidelines.
- What are the typical troubleshooting steps for relay issues? Refer to the user manual for specific troubleshooting steps based on the observed issue.
- Is the RE17LLBM relay suitable for industrial automation systems? Absolutely, it is designed to work efficiently in various industrial automation setups.
Additional information
| brands | Schneider Electric |
|---|---|
| Range of product | Harmony Timer Relays |
| Product or component type | Dual function relay |
| Component name | RE17L |
| Time delay range | 6…60 s 6…60 min 1…10 min 0.1…1 s 1…10 h 10…100 h 1…10 s |
| Control type | Selector switch front panel |
| supply voltage frequency | 50…60 Hz +/- 5 % |
| Housing material | Self-extinguishing |
| Power on delay | 100 ms |
| Safety reliability data | B10d = 320000 MTTFd = 353.8 years |
| Width | 17.5 mm |
| Net weight | 0.068 kg |
| Release input voltage | 7 V |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| On-load factor | 100% |
| Marking | CE |
| discrete output type | Solid state |
| Control signal pulse width | 0.05 s typical |
| Reset time | 350 ms on de-energisation typical |
| operating frequency | 10 Hz |
| Time delay type | L, Li |
| Functionality | Asymmetrical flashing timer |
| Compatibility code | RE17 |
| Breaking capacity | 0.5 A AC conforming to UL 0.7 A AC at 20 °C |
| Maximum output current | 20 A |
| Maximum leakage current | 5 mA |
| Maximum voltage drop | <4 V 3-wire <8 V 2-wire |
| Nominal output current | 0.7 A |
| Standards | IEC 61000-6-2 IEC 61000-6-4 IEC 61812-1 IEC 61000-6-1 IEC 61000-6-3 2006/95/EC 2004/108/EC |
| Product certifications | cULus GL CSA |
| Derating factor | 5 mA/°C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.7 cm |
| Package 1 Width | 8.0 cm |
