C.T 164- 400/5 | 165.RATIO: 400/5 VA:5CLASS:1 .TYPE:164-5-F5 FEET-DIN CLP
922 EGP

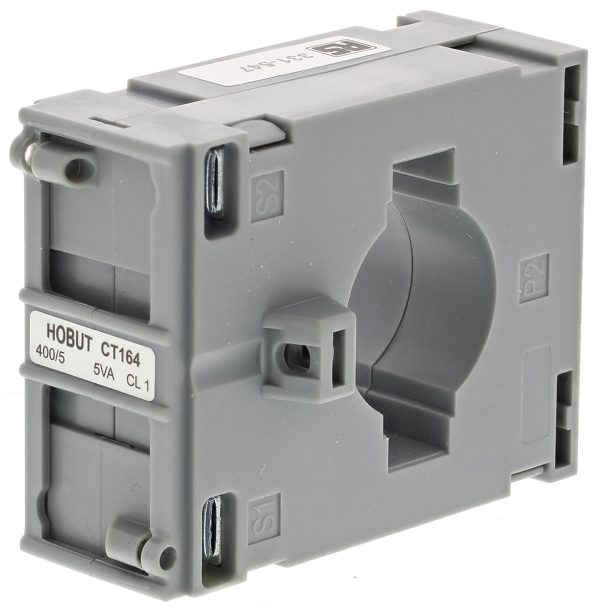

HOBUT CT164 Series DIN Rail Mounted Current Transformer
400/5 VA:5CLASS:1 .TYPE:164-5-F5 FEET-DIN CLP
Input400A
Output 5 A
C.T 164- 400/5 | 165.RATIO: 400/5 VA:5CLASS:1 .TYPE:164-5-F5 FEET-DIN CLP
Compact Busbar/Base Mounting Current Transformers – Series 162/164
A range of compact moulded case current transformers suitable for primary currents from 30A to 800A with built-in sealable terminal covers. For transforming various primary currents into,5A standard secondary using 20/30/40mm busbars or cables, or 28mm cables.
Built-in sealable terminal covers
Mounting feet and busbar screws supplied
Narrow width
DIN rail clip supplied
Dimensions: H78 x W60 x D30mm
28 x 40mm aperture
Conforms to IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Rated system voltage: 0.72/3kV
Ambient temperature range: -30 to 85°C
Continuous current: 1.2 x rated current
Mounting feet and busbar screws supplied
Narrow width
DIN rail clip supplied
Dimensions: H78 x W60 x D30mm
28 x 40mm aperture
Conforms to IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Rated system voltage: 0.72/3kV
Ambient temperature range: -30 to 85°C
Continuous current: 1.2 x rated current
